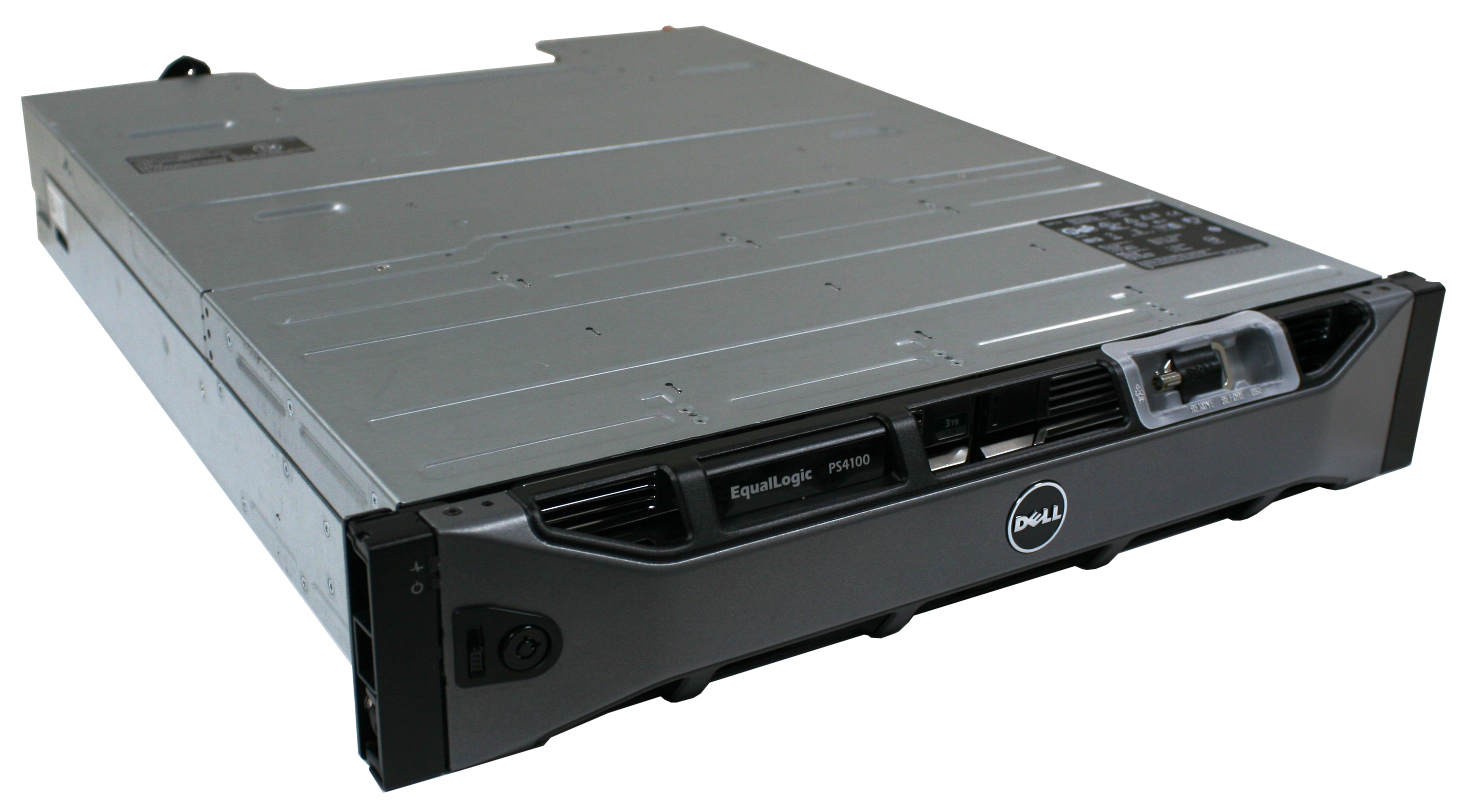

Dell© Equallogic PS4100 / 4110 chassis quick reference specifications

Dell Equallogic iSCSI storage arrays provide a robust expansion capability coupled with ease of setup. SCSISTUFF is here help you make the right choice.

PS4110 series One size chassis is available with the following configurations   2U 2.5" - twenty four 2.5" SAS drives     PS4110X  - twenty four 10K drives ( 300G, 600G, 900G)     PS4110XV - twenty four 24 x 300Gb 15K   2U 2.5" - twenty four 2.5" NL 7200 rpm SAS drives     PS4110E  - twelve 3.5" drives (1 , 2, 3 Tb)  Supported drives: All drives require unique Equallogic firmware.  SAS 15K - 300 Gb  SAS 10K - 300, 600, 900 Gb  SATA - None  NL-SAS - 1, 2, 3 Tb 7,200 rpm  NL-SAS SED - Does not work  SSD - Does not work Version 6 firmware and higher support RAID levels 6, 10, 50   Editors note:  RAID 5 removed in order to increase reliability   3, 4 Tb NL-SAS drives - RAID 50 is not a RAID option Firmware upgrade path thru version 9 series is assured 2 max members in one group Dimensions:   2U 2.5" chassis - 3.4 x 17.6 x 21.5 inches, weight 58 pounds with 24 drives installed Standardized chassis PS4110 series - 2 x type 17 controllers 2 x 700 watt power supplies. Autoswitching 120- 240 Volts AC, 50-60 hertz   Each 24 drive chassis requires 3 amps at 120 volts ( 5 amps required for cold start up)   Backplane: 24 3.5" drives with Equallogic trays supporting specified size SAS drives PS4110 controller Type 17 (gold) 1 x 10 Gb RJ45 1 x 10Gb SFP+ 1 x management port RJ45 1 x serial port DB9 1 IP address needed per chassis for port eth0  (only one 10Gb port is active) Only one controller is active at a time.  The other controller is purely a standby until failover occurs. Controllers will fail over from primary to secondary, corresponding IP addresses switch automatically. PS4100 series One size chassis is available with the following configurations   2U 2.5" - 24 x 2.5" SAS drives     PS4100X  - 24 10K drives ( 300G, 600G, 900G)     PS4100XV - 24 x 300Gb 15K   2U 2.5" - 24 x 2.5" NL 7200 rpm SAS drives     PS4100E  - 12 3.5" drives (1 , 2, 3 Tb)  Supported drives: All drives require unique Equallogic firmware.  SAS 15K - 300 Gb  SAS 10K - 300, 600, 900 Gb  SATA - None  NL-SAS - 1, 2, 3 Tb 7,200 rpm  NL-SAS SED - Does not work  SSD - Does not work Version 6 firmware and higher support RAID levels 6, 10, 50   Editors note:  RAID 5 removed in order to increase reliability   3, 4 Tb NL-SAS drives - RAID 50 is not a RAID option Firmware upgrade path thru version 9 series is assured 2 max members in one group Dimensions:   2U 2.5" chassis - 3.4 x 17.6 x 21.5 inches, weight 58 pounds with 24 drives installed Standardized chassis PS4100 series - 2 x type 12 controllers 2 x 700 watt power supplies. Autoswitching 120- 240 Volts AC, 50-60 hertz   Each 24 drive chassis requires 3 amps at 120 volts ( 5 amps required for cold start up)   Backplane: 24 3.5" drives with Equallogic trays supporting specified size SAS drives PS4100 controller Type 12 (purple) 2 x 1 Gb RJ45 1 x management port RJ45 1 x serial port DB9 2 IP addresses needed per chassis for ports eth0 thru eth1 Only one controller is active at a time.  The other controller is purely a standby until failover occurs. Controllers will fail over from primary to secondary, corresponding IP addresses switch automatically. PS4100 series rear view
